| Engine |
|
|
|
|
| Configuration |
60°
V twin, DOHC, 8 valves, liquid cooled, dual AVDC
counterbalancers. |
|
Gearbox |
1° 35/14 (2.5)
2° 28/16 (1.75)
3° 26/19 (1.368)
4° 24/22 (1.091)
5° 22/23 (0.957)
6° 23/27 (0.852)
Primary 60/31 (1.935) |
| Bore & Stroke |
97 x 67.5 mm |
|
Clutch |
Hydraulic, wet multiplate, PPC
vacuum actuated slipper clutch. Metal braided clutch hose. |
| Capacity |
997.62cc |
|
Final Drive |
Chain; sprockets: 41/16 |
| Compression Ratio |
10.8:1 |
|
Lubrication |
Dry sump, external oil tank, oil radiator, trochoidal scavenge and
feed pumps. Circuit capacity 4 litres. |
| Maximum Power |
118 HP at 9.250 r.p.m.
(86.7 Kw) |
|
Starter |
Electric |
| Maximum Torque |
9.75 Kgm at 7.000 r.p.m.
(95.6 Nm) |
|
Charging system |
12v - 400w - 14ah battery |
| Fuel System |
Integrated electronic engine management. Indirect multipoint
injection, Ø 51 mm throttle bodies; 95 RON unleaded fuel |
|
Ignition |
Electronic digital with two sparkplugs per cylinder,
integrated with injection. |
| Exhaust |
All stainless 2/1, EURO1 standard. |
|
Cooling |
Liquid cooled, with three-way-pressurized circuit, double
radiator, circuit capacity l 2.6 |
|
|
|
|
|
| Chassis |
|
|
|
|
| Frame |
Box
type inclined double beam in magnesium alloy with
removable aluminium sub-frame.
Trail 100 mm Castor angle 24.5° |
|
Wheels |
Front: 3.50 x 17"
Rrear: 6.00 x 17"
Brembo in aluminium alloy, 5 spokes |
| Dimensions |
| Weight: |
190 Kg dry (49/51) |
| Wheelbase: |
1415mm |
| Length: |
2050 mm |
| Seat Height: |
815 mm (max) |
| Ground Clearance: |
|
| Width: |
|
| Height: |
|
|
|
Tyres |
Front: 120/70 ZR 17
Rear: 180/55 ZR 17
Radial tubeless f&r. |
| Front Suspension |
Inverted Ø 43 mm Showa forks, 120 mm travel ,
external adjustment for rebound, compression and preload. |
|
Brakes |
Front: Brembo dual floating stainless steel discs Ø
320 mm, caliper with 4 differentiated diameter pistons Ø 34 mm and
30 mm.
Rear: Ø 220mm Brembo caliper with 2 pistons Ø
32 mm.
Sintered brake pads and Freudenberg brake lines front
and rear. |
| Rear suspension |
Swingarm in aluminium alloy; progressive link with APS
system, Sachs shock-absorber adjustable in compression, rebound,
spring preload and length, 130 mm travel. |
|
Fuel Capacity |
21 litres, reserve 4 litres |
|
|
|
|
|

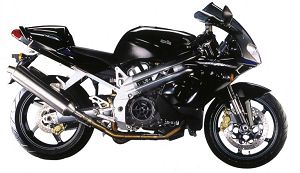

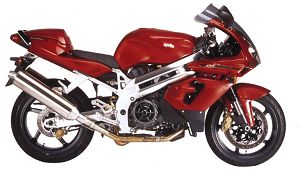

| Colour Scheme |
see below |
|
Standard features |
Analogue-digital dash, steering damper, triple headlights |
